LPG/NG Sensor(반도체식)
-
LPG/NG Sensor의 특징
GSMS61 센서는 가스누설경보기용으로, 기존 산화물 반도체 센서의 단점인 선택성을 대폭 향상 시킨 제품으로써, 특히 주방 요리 시 발생하는 각종 가스에 탁월한 선택성을 가지고 있으며, 안정된 감지구조를 확보하여, 반영구적 사용이 가능하다. -
Sensor type
산화물 반도체(Metal Oxide Semi-conductor)type -
감지대상 가스
부탄(Butane, C4H10), 메탄(Methane, CH₄), 수소(Hydrogen, H₂) -
응용
후드, 환풍기, 배기장치, 가스누설경보장치(폭발성 가스)
-
Characteristics of the LPG/NG Sensor
GSMS61 sensor is used as a gas leakage detection alarm. The product has dramatically enhanced selectivity, which was formerly a shortcoming with existing oxide semiconductor sensors. It shows superior selectivity in detecting various gases that are generated while cooking in the kitchen and its reliable detection structure enables semi-permanent usage. -
Sensor type
Metal Oxide Semiconductor type -
Gas for detection
Butane(C4H10), Methane(CH₄), Hydrogen(H₂) -
Application
Hood, Ventilator, Damper, Gas Leak Alarm(Explosive gases)
GSMS61 for CNG, GSPS61 for LPG
| GAS | LPG/LNG Sensor | Specification(규격서) | |
|---|---|---|---|
| 한글 | English | ||
| Model No | GSMS61 for CNG, GSPS61 for LPG | ||
| Power | DC 5V±1%, 680mW or less | ||
| Sensitivity |
Butane (4,500ppm) : 0.05 ≤β≤ 0.15 Methane(12,500ppm) : 0.20 ≤ β ≤0.30 |
||
| Application | Hood, Ventiler, Damper, Gas Leak Alarm(Explosive Gases) | ||

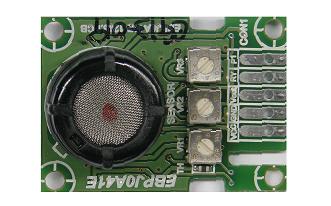

GSMS61-P1XX for CNG, GSPS61-P1XX for LPG
| GAS | LPG/NG Sensor Module | Specification(규격서) | |
|---|---|---|---|
| 한글 | English | ||
| Model No | GSMS61-P1XX for CNG, GSPS61-P1XX for LPG | ||
| Power | DC 5V±1%, 710mW or less | ||
| Sensitivity |
RY Output : Low(0V) or HI(4V) HI Output : Butane(4,500ppm), Methane(12,500ppm) |
||
| Application | Hood, Ventiler, Damper, Gas Leak Alarm(Explosive Gases) | ||
