  • Smoke Sensor의 특징
    실생활 주변의 여러가지 냄새(HC, 황화물, 아민류, 유기용제, 음식물 조리가스,담배연기)를 고감도로 감지하는 센서.
  • Sensor type
    반도체(Semi-conductor)type
  • 감지대상 가스
    탄화수소가스, 담배연기, 유기용제
  • 응용
    공기청정기, 배기장치
  • Characteristics of the Smoke Sensor
    Sensor which detects various different smells in an actual living environment(HC, sulfide, amine-types, deserted solvents, foodstuffs cooking gas, tobacco smoke)with its high sensitivity
  • Sensor type
    Semiconductor type
  • Gas for detection
    Hydro Carbon, Tobacco gases, Organic Solvent
  • Application
    Air Purifier, Damper

GSAS61(S type)

Smoke Sensor
GAS Smoke Sensor Specification(규격서)
한글 English
Model No GSAS61(S type)
Power DC 5V±1%, 650mW or less
Sensitivity H₂(200ppm) : 0,060≤β≤ 0.167
Smoke(2,000ppm):β≤0.3
Application Air Purifier, Damper

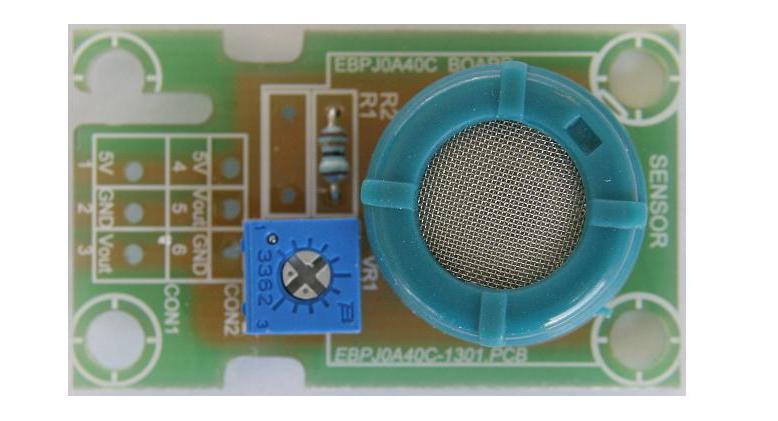

GSAS61-P1XX

Smoke Sensor Module
GAS Smoke Sensor Module Specification(규격서)
한글 English
Model No GSAS61-P1XX, PCB Size:W25.0mm X H35.0mm
Power DC 5V±1%, 650mW or less
Sensitivity H₂(200ppm) : 0,060≤β≤ 0.167
Smoke(2,000ppm):β≤0.3
Application Air Purifier, Damper

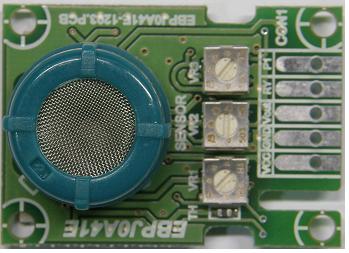

GSAS61-P31X

Smoke Sensor Module
GAS Smoke Sensor Module Specification(규격서)
한글 English
Model No GSAS61-P31X, PCB Size : W22.0mm X H37.0mm
Power DC 5V±1%, 650mW or less
Sensitivity H₂(200ppm) : 0,060≤β≤ 0.167
Smoke(2,000ppm):β≤0.3
Application Air Purifier, Damper
